• SEBINO | Fire and Security

  • Advanced tools and high level competence

    The Fire Protection business unit deals with the project, production, testing and installation of complete fire protection systems.

    We usually start by analysing the area and the risks related to it. After completing specific hydraulic calculations, in compliance with national and international standards, we move to construction drawings which enable prefabrication on a robotized production line.

    After a series of quality tests, the prefabricated pieces are powder painted, codified according to the assembly plan and subsequently packed. After the prefabricated structures have been installed according to the assembly sequence, the essential parts of the system are completed, such as valves, pumping station and water reserve. After checking that the project parameters are met on the installed system with specific tests, the final test is carried out with the customer, but only after involving the staff in charge in a system management training.

    The systems designed by Sebino Fire and Security comply with the NFPA, FM GLOBAL, Vds, UNI EN, APSAD, SR EN standards.

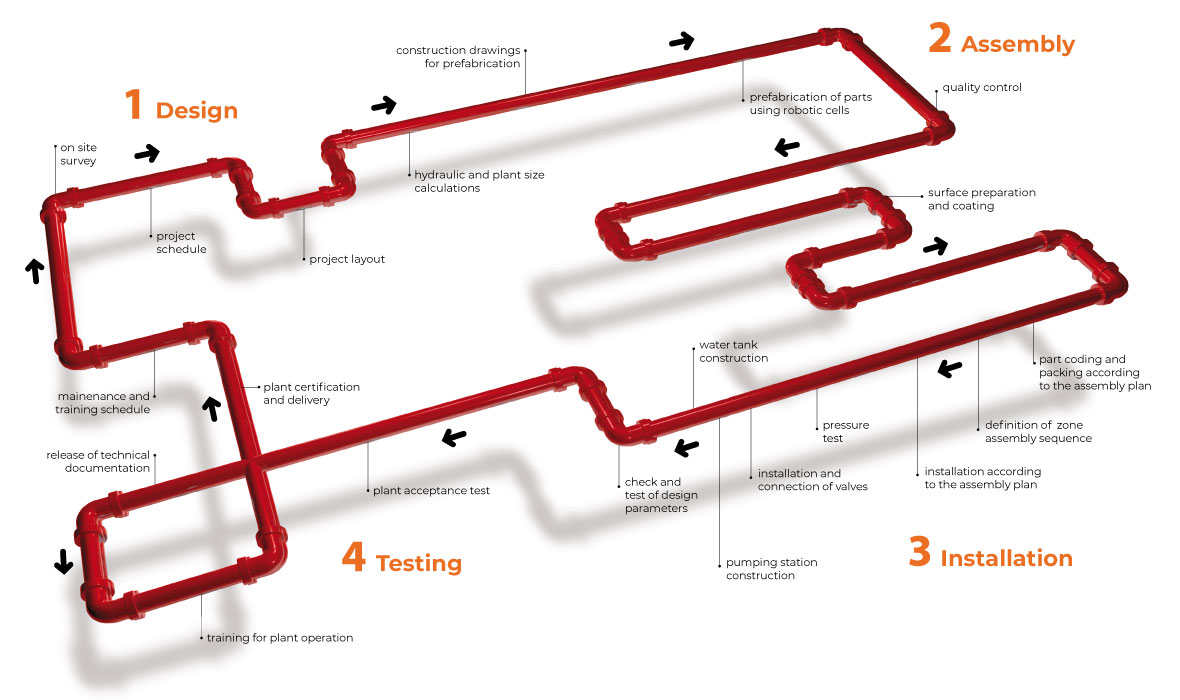

    The phases of the interventions

    1. Project

    • On-site survey
    • Project analysis and timing
    • Project layout
    • Hydraulic calculations and system sizing
    • Prefabrication construction drawings

    2. Production

    • Prefabrication on robotized line
    • Quality tests
    • Surface preparation and coating

    3. Installation

    • Codification and packaging according to the assembly plan
    • Definition of zoning assembly sequence
    • Installation according to the assembly plan
    • Pressurization test
    • Valve installation and connection
    • Pumping station
    • Fire water tank
    • Project parameter check

    4. Final Test

    • System final test
    • System control training
    • Technical documentation of the system
    • System certification and delivery
    • Start of the Training maintenance program

    Everything is done internally. From Design to Final Test and Maintenance.

    Full service and in-home management of all process steps do not imply the coordination of component purchases and external contractor performances. This has been our choice and the market has acknowledged its effectiveness.

    The workshop skillfully deals with fully detailed projects in compliance with ISO 9001.2008 Standard for the production of manifolds and branches up to 9 meters by means of a robotized production system which virtually avoids human errors. These manifolds and branches are FM Global approved. Raw materials are carefully selected among made-in-Europe welded and un-welded pipes, which ensure economic saving and total safety after strict quality tests in compliance with UNI EN 10255 – 10216 – 10217 Standards. Welding and coating operations are also carried out internally so that quality can be directly controlled.

    Our warehouse is always fully stocked and our employees can skilfully deal with each step of the operations, ranging from design to post-sales maintenance.

    Installation? Efficiency and Quality

    Installation usually requires a relatively long attendance on site to develop the project and fit the components. The installation of a prefabricated system ensures very short assembly timing with accurate, high quality and reliable outcomes. The different pieces are labelled during production in the workshop. This ensures an analytical file of each piece with all construction data, both dimensional and technical. This way the assembly plan is also complied with, avoiding mistakes and second-hand solutions. Operational startup and system test are quickly achieved without unexpected events.

    Upon delivery, our trained personnel first carry out the final test of the system, during which operational data are recorded, checked and analyzed before transferring the ownership of the system. We supply complete specific documents to the customer for operational tests and correct use of the system, a malfunction identification procedure and a list of parts that could be necessary during the system lifetime. System certificates and specific technical documents are finally supplied. After training the system maintenance operators, a maintenance plan is outlined and started, in compliance with the standards, ensuring a flawless system efficiency.
